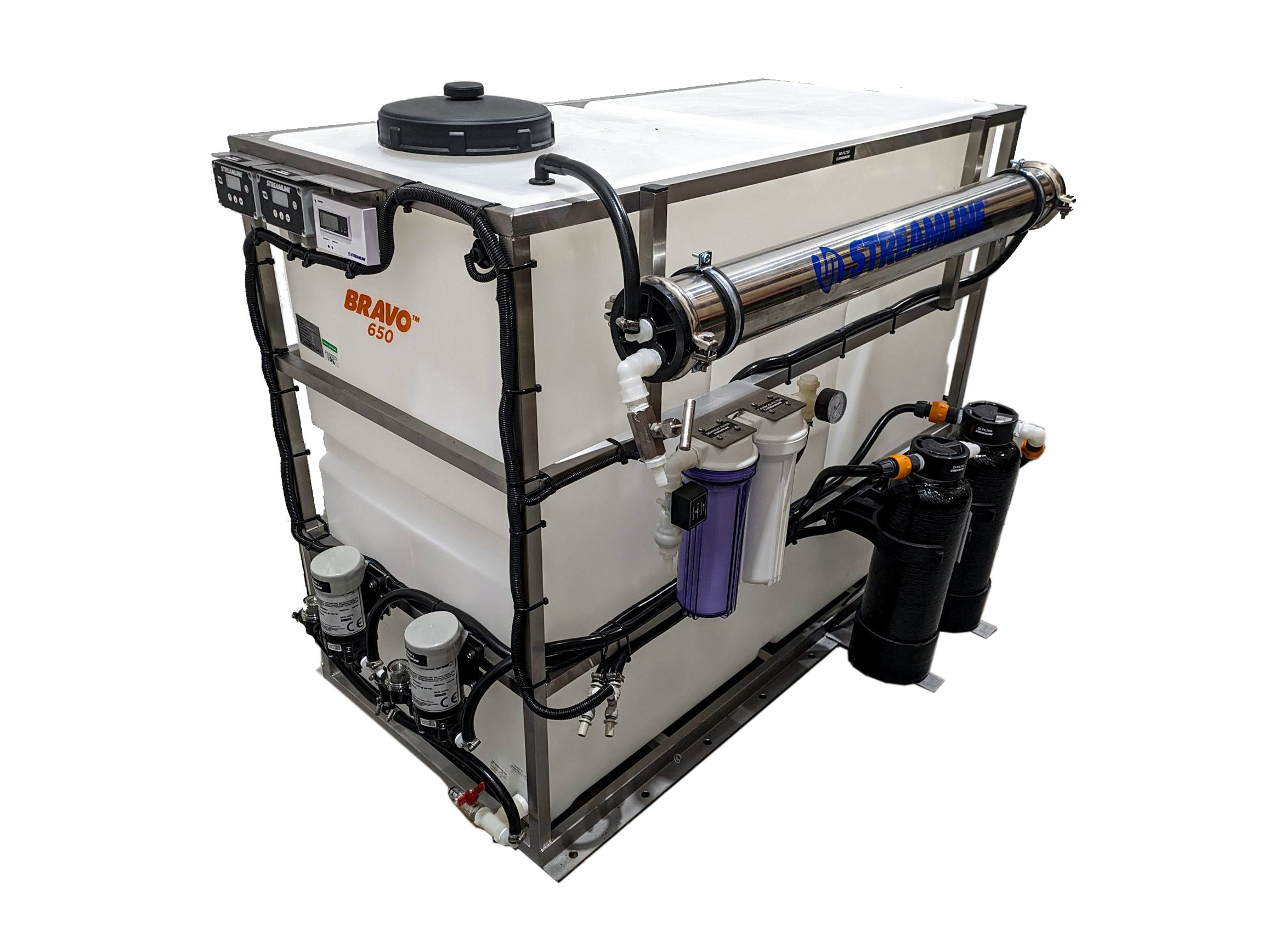

The Bravo650ltr Streamline® System Bravo650ltr Streamline® System The models below are single-operator systems. If you choose a double operator system, all quantities marked with 1x will be doubled. Bravo650ltr (No Filtration) Includes: 650ltr Baffled Tank With Vented Tank Lid Full Stainless Steel Frame 1x Streamline® SFC16 Digital Flow Controller 1x Shurflo® Pump 12v 100psi / 3.8lpm C/W Inline Filter 1x Float Valve Shut-Off On Tank Inlet 2mtrs Of Wiring With Battery Terminals To Connect Onto A 12v Battery *Please Note A Battery Is Not Included With This System (See SP100 For A Split Charge Relay Kit To Suit A EURO 5 Vehicle Or SP100-PRO To Suit A EURO 6 Vehicle) Bravo650ltr DI (DI Filtration) Includes: 1x Filterplus® 6×18, 7ltr Filter Vessel Filled With DI Resin 1x Metal DI Filter Clamp And Mounting Board 1x HM Digital Handheld TDS/Temperature Meter With Carrying Case 1x Hoselock Male Outlet Connection On DI Vessel Bravo650ltr RO (Reverse Osmosis DI Filtration) Includes All The Above Specification Plus: 40″ Reverse Osmosis Membrane and Stainless Steel Housing Capable of Producing Up to 120ltrs Per Hour, Thus Filling The 650ltr Tank In Roughly 4-5hrs Filterplus® Triple 10inch Inline Prefilter Set – See replacement Filter Set (KIT02310-001) Additional Bravo650ltr Weights, Specifications, and Optional Extras: All Streamline® Systems come as supply only kits. If you would like the system installed into a vehicle, please contact us for more information The Bravo650ltr systems can be manufactured as single or double operator systems Streamline® systems do not include a battery (See SP100 for a Split charge relay kit to suit a EURO 5 vehicle or SP100-PRO to suit a EURO 6 vehicle) Weights and Dimensions Dry Weight 136.0kg Wet Weight 786.0kg Max Width 1400mm Max Height 1110mm Max Length 810mm
